Dilushaker III
Dilushaker III digital is our oldest laboratory shaker, it's very robust and easy to use.
In fact, many of our customers are very satisfied with this instrument, which in some laboratories is still working perfectly after 20 years.
How to use it?
Set the rotation speed, shaking time, workflow direction and number of dilutions before you begin diluting your samples with Dilucup® Elegance.
The LED lights located on a ramp at the back of the tray assist the manipulator during the dilution process by showing which cup (column) is to be processed.
Shaking starts immediately when the optical sensor at the front of the shaker is activated, or when the footswitch is used.
An affordable laboratory shaker for smaller budgets
- Shaking time: 1 - 30 s per dilution
- Rotation speed: 400, 500 or 600 rpm
- Removable tray for easy cleaning
- Ramp with 3 LED lights to guide the user
- Adjustable direction of the ramp to suit both right- and left-handed users
- Adjustable number of dilution steps per sample
- Possible steering by footswitch
- One optical sensor located on the front
- For blisters of 7x3 Dilucups
- Article number: 40DS21PRXT
Since 2026, Dilushaker III with 6-LED ramp is no longer available for sale.

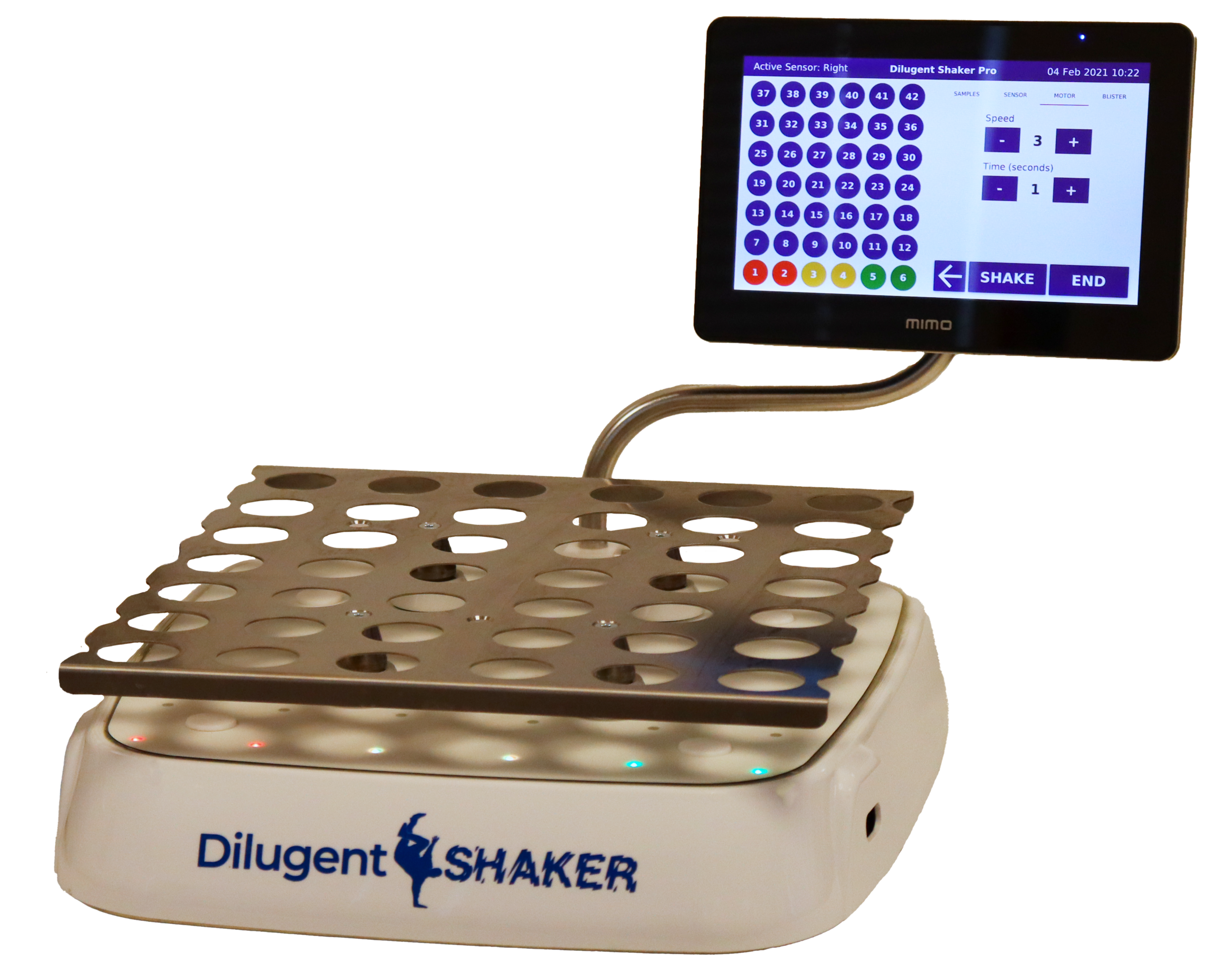

Dilushaker III vs Dilugent® Shaker
| Features | Dilushaker III | Dilugent® Shaker |
|---|---|---|
| Number of LED lights | 3 | 42 |
| Number of dilutions per sample | 12 | 12 |
| Shaking time | 1 to 30 s | 1 to 60 s |
| Motor speeds | 400, 500, 600 rpm | 410, 460, 510, 560, 610, 660 rpm |
| Possible steering by footswitch | Yes | Yes |
| Number of optical sensors to activate agitation | 1: at the front | 2; one on each side |
| Total height (without screen) | 11 cm | 8 cm (more ergonomic) |
| Tray removal | Rotate the tray while pressing | Magnetic |
| Dilucup® format | 3x7 Dilucups | 3x7 and 6x7 Dilucups |
| Traceability of dilutions | No | Yes |
| Shake without influencing the LED lights | No | Yes |
| Simultaneous dilution series with optical guide | No | Yes |
Download the user manual here!
We've updated and improved the manual
and adapted it for instruments with only 3 LEDs.
The programming information is identical since it's the same instrument; the only difference is the size of the ramp.
So, you can still take a look at the
latest User Guide from January 2026,
even if you have a Dilushaker III with 6 LEDs
and perhaps learn a few new features.
